ACAS-X Combination G Meter + Chassis Angle Sensor for Holley Terminato

Download ACAS Instructions By Clicking Here

This is a combination accelerometer and wheelie-management sensor for Holley ECUs only (universal versions coming soon).

This sensor communicates to the ECU via CAN Bus.  It is ONLY COMPATIBLE WITH HOLLEY ECUS USING HOLLEY CANBUS 1MB PROTOCOLS.

ACAS+X sends 4 high speed CAN data channels to Holley:  Chassis Angle, Pitch Velocity, Raw X Acceleration and Corrected X Acceleration.

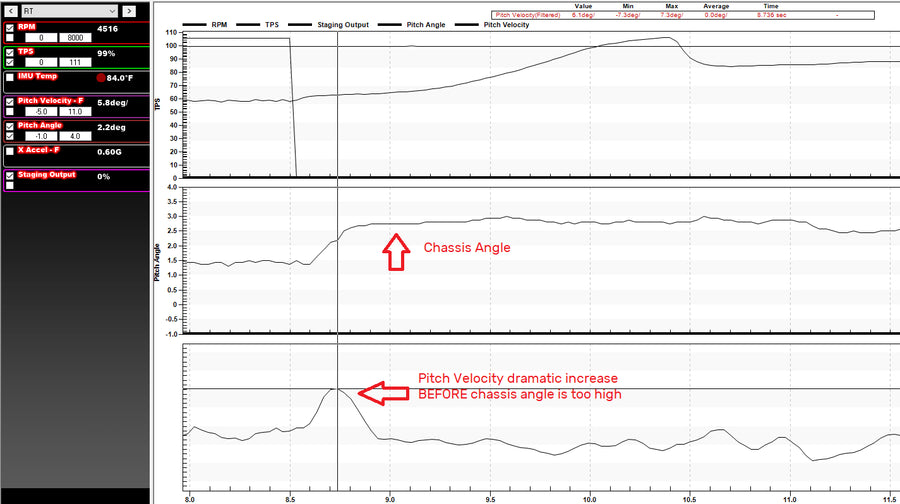

Chassis Angle is the Pitch or wheelie angle of the chassis, Pitch Velocity is the rate of change of Chassis Angle.  Pitch Velocity has shown to be more useful than Chassis Angle alone for power management.  Observing realtime velocity of your chassis is far more useful than the chassis angle itself.

Raw X-Accel is the normal X-Axis accelerometer (G-meter) data, uncorrected for chassis angles.  Corrected X-Accel is a corrected acceleration figure that produces more consistent data car to car and pass to pass than raw, uncorrected data.

The sytem is zero’d each time it’s powered on, OR can be configured to “zero” whenever a message is received from the Holley ECU:  for example, zero the ACAS-X whenever you press the trans brake button.  This uses all the normal onboard logic and I/O configuration on the holley:  no configuration of the ACAS-X is required.

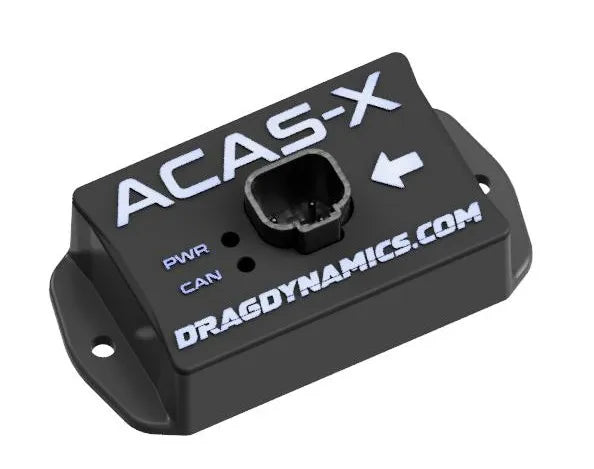

• Mounted in a watertight case, using a high quality Deutsch DTM 4-way connector
• Comes with a 4-ft flying lead harness with the mating Deutsch connector already installed.
• ACAS-X wiring requires only four simple connections.
• All software configuration is handled inside the Holley ECU.
• Satisfaction guaranteed!
  ACAS units may take up to 7 days to ship.
• Each unit is hand assembled in the USA, tested and calibrated individually.
• Questions?  email us at support@dragdynamics.com
