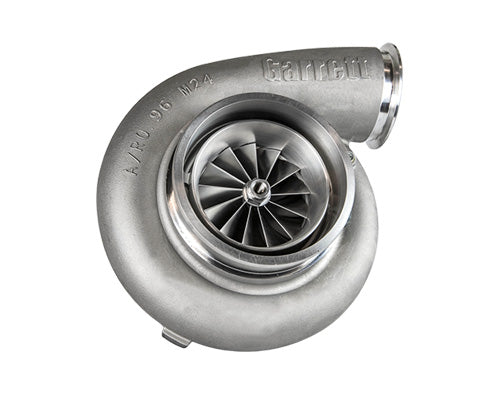

Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing

Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing
Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing
Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing
Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing
Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing

Garrett Gen 2 Gtx5544R Turbo Dual Ball Bearing

$5,694.69

  • Brand: Garrett
  • Availability: Out Of Stock

GTX5544R GEN II Dual Ball Bearing Turbo Super Core   Horsepower: 1400 - 2850 Displacement: 3.0L - 12.0L Features GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE 102mm AND 106mm COMPRESSOR...

Tags: Featured Products , Garrett , New Arrivals , On Sale , product category: Forced Induction , Turbochargers

GTX5544R GEN II Dual Ball Bearing Turbo Super Core



Horsepower: 1400 - 2850

Displacement: 3.0L - 12.0L


Features

  • GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 102mm AND 106mm COMPRESSOR OPTIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • LIGHT WEIGHT BILLET BACKPLATE
  • SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING

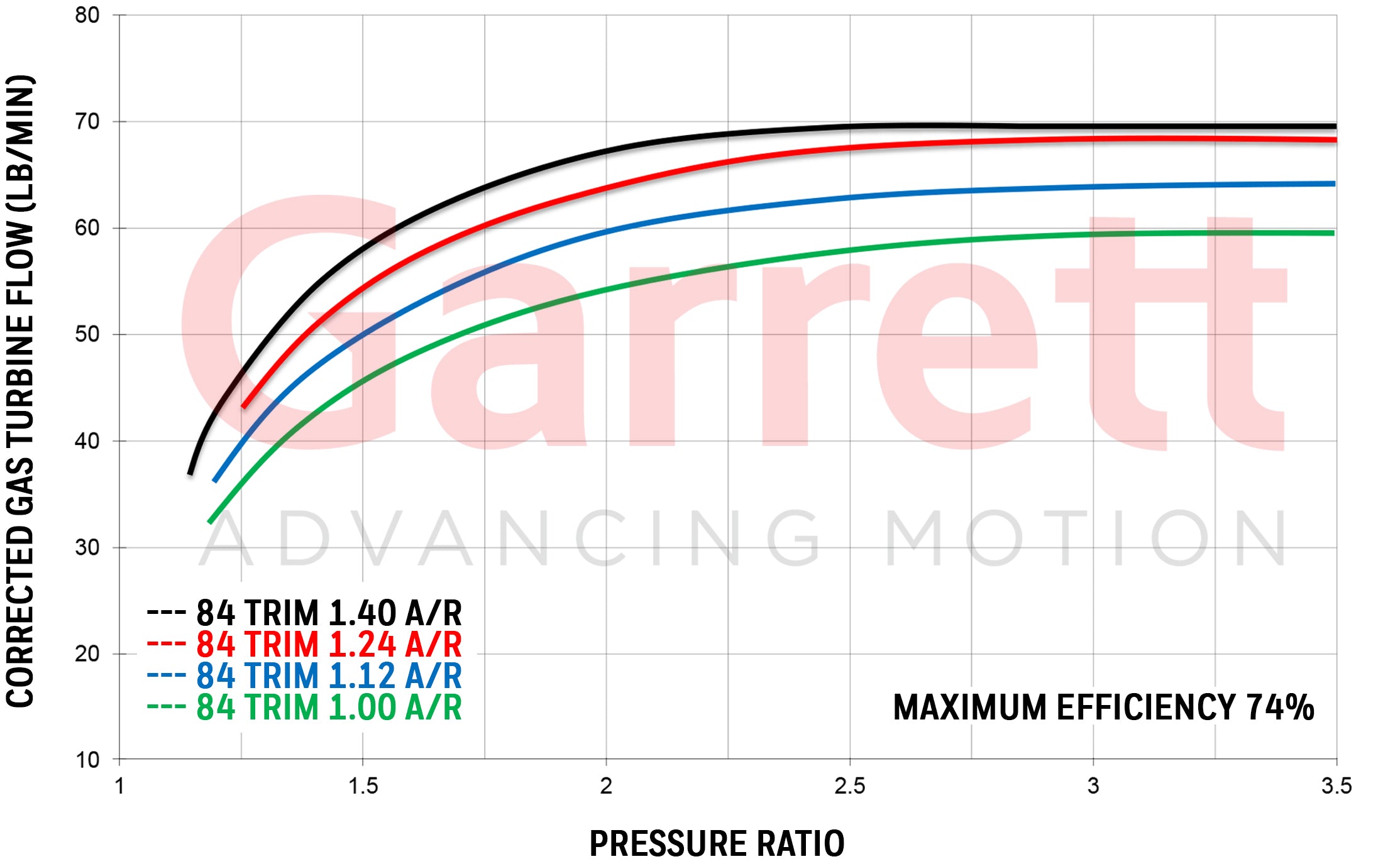

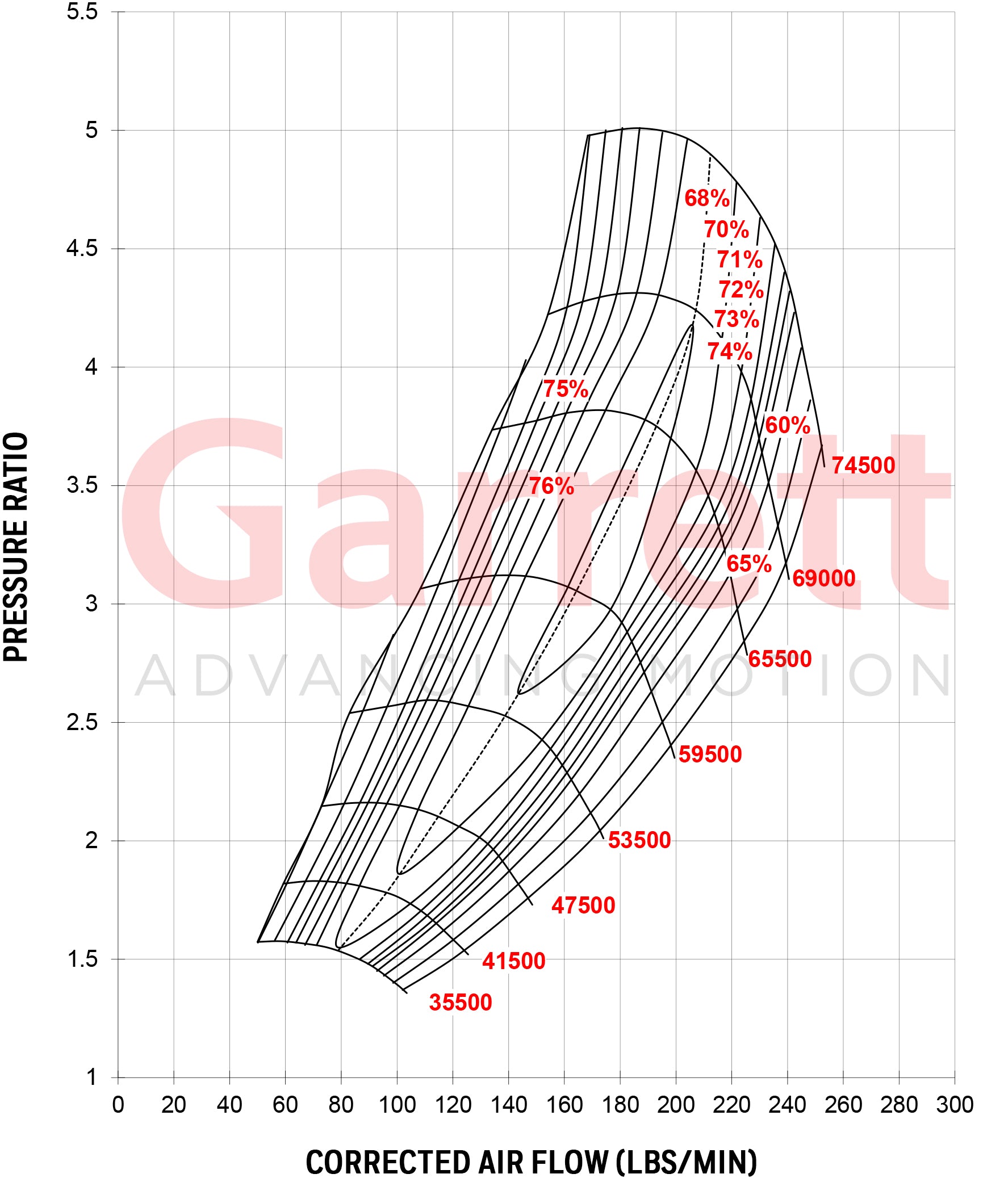

GTX5544R GEN II Compressor Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim
851285-5021S 102mm 144mm 50 0.96 112 102 84
851285-5022S 106mm 144mm 54 0.96 112 102 84
