'99 - '03 VORTEC W/ 4L60E STANDALONE WIRING HARNESS (DBC) APPLICATION: 1999 - 2003 CHEVROLET, GMC, CADILLAC AND HUMMER TRUCK ENGINES (DRIVE BY CABLE ONLY) WITH 4L60E OR 4L80E TRANSMISSIONS....
Tags: product category: Vortec 24X w/4L60E/4L80E , Wire Harnesses & Accessories

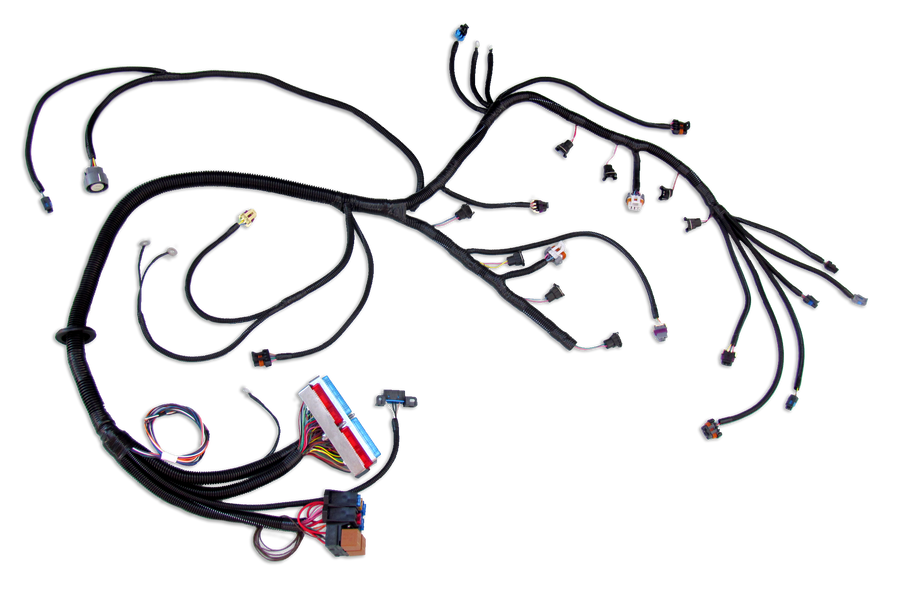

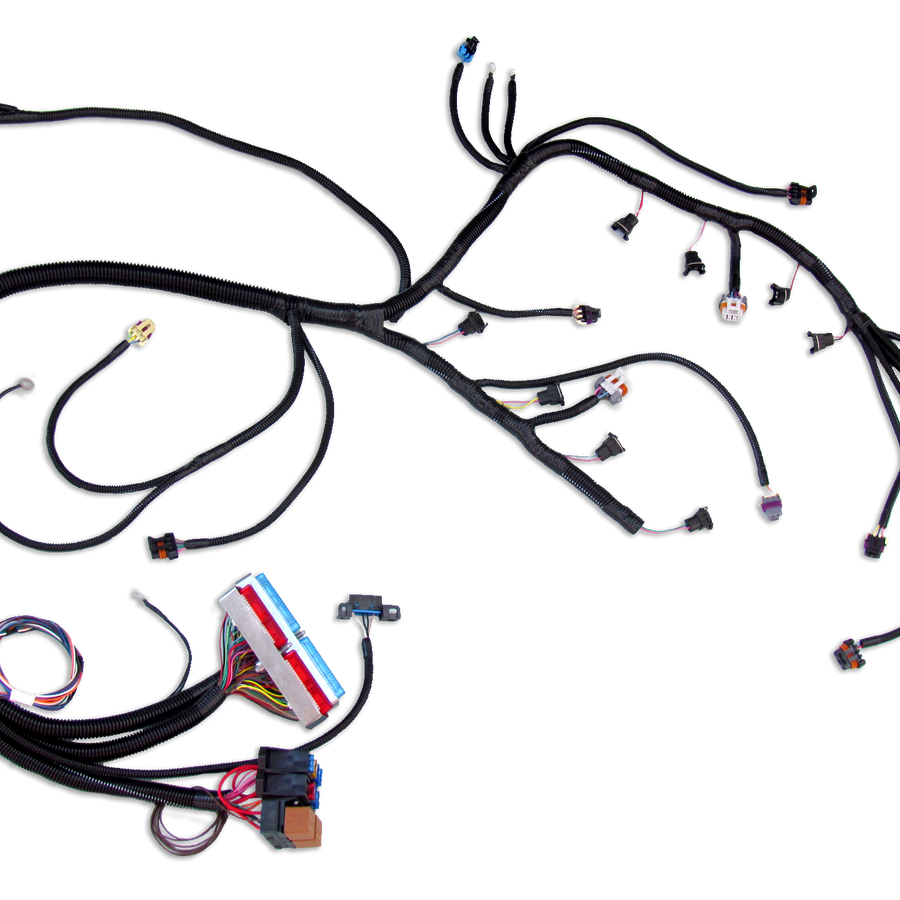

'99 - '03 VORTEC W/ 4L60E STANDALONE WIRING HARNESS (DBC)
APPLICATION: 1999 - 2003 CHEVROLET, GMC, CADILLAC AND HUMMER TRUCK ENGINES (DRIVE BY CABLE ONLY) WITH 4L60E OR 4L80E TRANSMISSIONS.
CAN ALSO BE OFFERED WITH NO TRANSMISSION PROVISIONS FOR TH350,TH400 Etc.
PARTS INCLUDED: Complete engine and transmission harness, Instruction Manual
NOTES: These harnesses are designed for retrofitting '99 - '03 Vortec engines (4.8, 5.3, 6.0, 6.2-Liter) and 4L60E or 4L80E transmissions into older muscle cars and street rods or newer non-emissions controlled vehicles. Harness allows use of the factory Vortec intake manifold and multec injectors with flex-fuel injectors (EV6) optional. They are completely plug and play with four wire hookup (switched power, constant power and ground connections required). Harnesses are designed with a sliding grommet seal and 4 - 5 feet of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. A sliding grommet seal allows for professional, leak proof installation.
Harnesses are professionally constructed from Brand New GM Delphi Connectors and TXL (Polyethylene Cross Linked) High Temperature Wire to GM Specifications. All harnesses are 100% Quality Inspected prior to shipping. Note that harnesses are for non-emissions equipped vehicles and do not include air pump or EGR provisions. All harnesses require PCM VATs removal, available through Sho-Me Speed.
ADDITIONAL ITEMS REQUIRED:RED/BLUE PCM (SERVICE NUMBER 411 or 896)
